B20 HP

FIREWOOD PROCESSOR

5+ Cords per Hour
Cuts up to 24″ Diameter Logs & 24′ Length
74 HP Doosan Diesel Engine
Standard with Auto Stop and Upgraded Last Piece Table
Available with Optional 24-Way Wedge
Shown with Optional 16′ Conveyor

starting at

$93,400

build your own

configure

features

benefits

see it in action

Down payment starting at $0 & 10-year terms.

Get Financing

product details

Maximum Power.
Maximum Capacity.
Maximum Productivity.

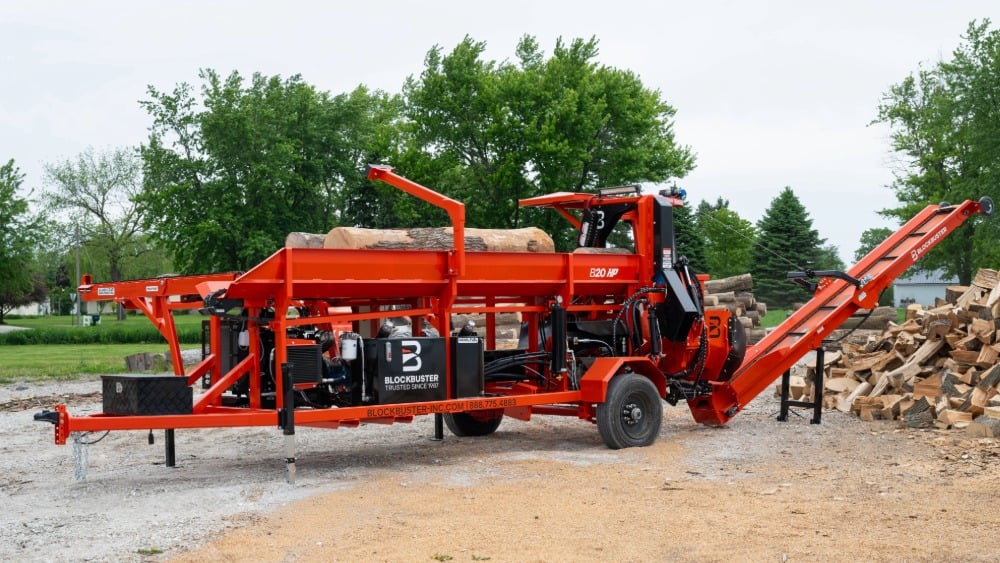

The Blockbuster B20 HP is engineered for commercial operators who process the largest logs and highest volumes. With a 74 HP Doosan Diesel engine, 24-inch diameter capacity, and 40-ton splitting force, the B20 HP handles what other processors can't.

Built on 35+ years of Blockbuster engineering excellence, the B20 HP delivers the power, precision, and productivity that serious firewood businesses demand.

B18 HP High Performance Firewood Processor

Build your B20 HP Firewood Processor

Starting at $93,400

SEE ALL OPTIONAL FEATURES SEE ALL WEDGES

Product total:

Options total:

Grand total:

Standard Features

74 HP 4-Cylinder Doosan Diesel Engine
Adjustable 8 Splitting Head
6″ x 24″ Hydraulic Splitting Cylinder with 40-Ton Splitting Force
Split Boost Feature for High-Speed Splitting (3.7 Second Cycle Time)
100 GPM Total Hydraulic System Flow
Auto Stop (12″–22″ Adjustable)
Improved Pivoting Last Piece Table
10-Foot 3-Strand Hydraulic Folding Live Deck
Hydraulic Saw 18H 90cm Harvester Bar and Chain with Air-Powered Auto Retract System
User-Friendly Operator’s Station with Sliding Window Access
15′ 8″ Infeed Log Trough with Chain Drive
Single 10,000 lb Spring Axle with Electric Drum Brakes
Log Deck Tines for Controlled Feeding
50-Gallon Baffled Hydraulic Tank
25-Gallon Fuel Tank Capacity
Hydraulic Oil Cooler with 12V Cooling Fan
Adjustable Saw Dust Chute
Wedge Storage Compartment
Auxiliary Hydraulic Pump for Elevator Functions
Pump Configuration Allows for Cutting and Splitting to Occur Simultaneously
Air Compressor
Operator’s Seat
Toolbox
Running Lights

Maximum Log Diameter: 24 inches
Maximum Log Length: 24 feet
Split Length Range: 12″ to 22″
Maximum Splitter Opening: 24″
Production Capacity: 5+ Cords per Hour (128 cubic ft. cords)
Splitting Force: 40 Tons
Hydraulic Cylinder: 6″ x 24″ with 5″ Rod
Split Boost Cycle Time: 3.7 Seconds
Total Hydraulic Flow: 100 GPM
Length: 24’ 4” without attached elevator
Width – Travel: 8’9” (8’ 6” with dust chute removed)
Width – Operating: 14’
Height – Travel: 10’ 6” (with and without attached elevator)
Height – Operating: 8’ 10”
Weight: Approx. 10,300 lbs with fluids (11,200 lbs. with 16’ Attached Elevator)
Tongue Weight: Approx. 1900 lbs. (1400 lbs. with 16’ Attached Elevator)

Featured Benefits

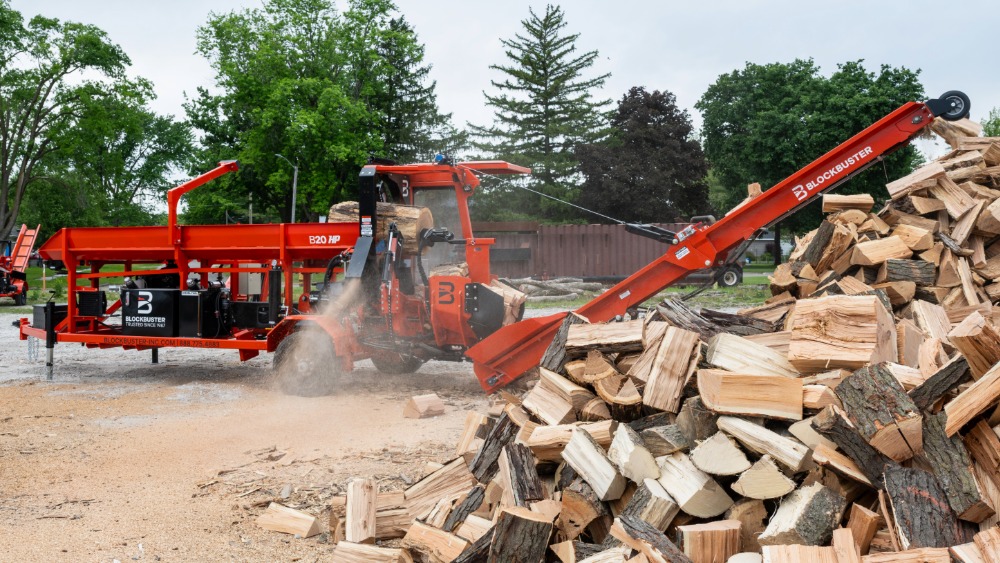

Revolutionary Speed with Boost Mode Splitting

Experience lightning-fast processing with our exclusive Split Boost technology, featuring a dual-pump system delivering 100 GPM total hydraulic flow. The standard single-pump operation provides consistent automatic cycling for routine work, while the second pump can be instantly activated with the push of a button to double your splitting speed and achieve cycle times 3.7 seconds with the powerful 40-ton cylinder.

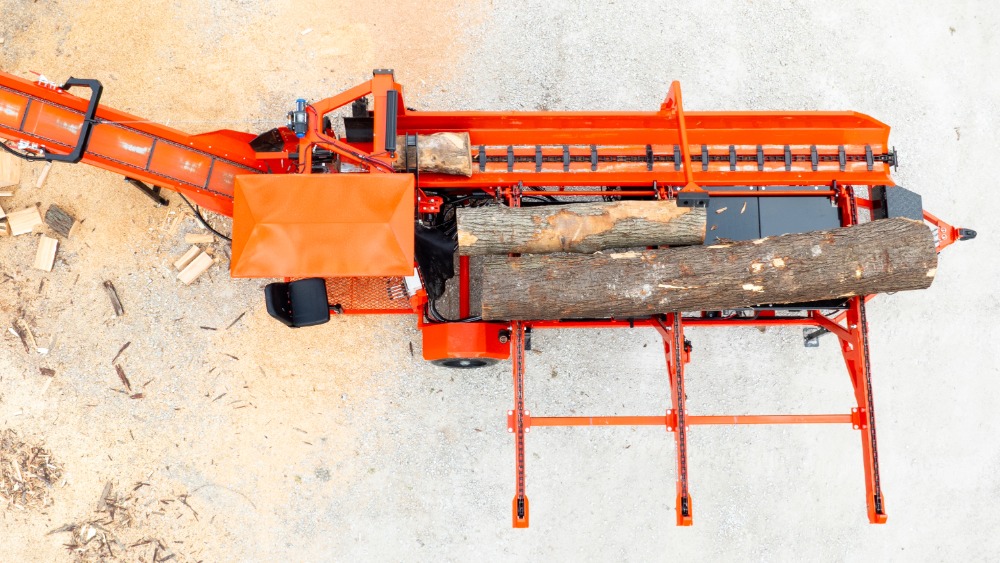

10-Foot Live Deck

The massive 10-foot live deck provides more log staging capacity than standard processors. Stage more logs at once, reduce reload frequency, and keep your operation running at peak efficiency.

Combined with log deck tines for controlled feeding, the B20 HP ensures smooth, consistent material flow from deck to trough to splitting chamber.

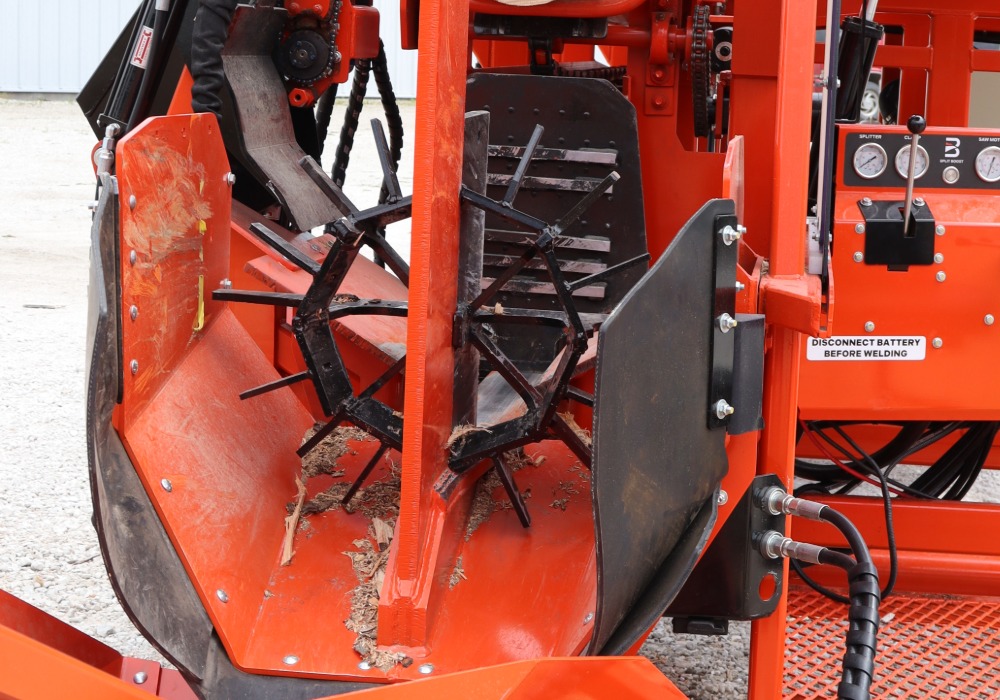

Enhanced Splitting Chamber & Optional 24-Way Wedge

Our recessed splitting chamber eliminates the frustration of lifted splitting wedges. Wood flows freely to the elevator below, minimizing wedge lift and ensuring consistent, uninterrupted splitting performance even with the toughest hardwoods.

The increased chamber depth ensures wood doesn’t cause the splitting head to rise, maintaining optimal splitting geometry throughout every cycle.

Up your firewood game with our optional 24-way wedge for maximum splitting capacity. The 24-way wedge is only currently available on the B20 HP.

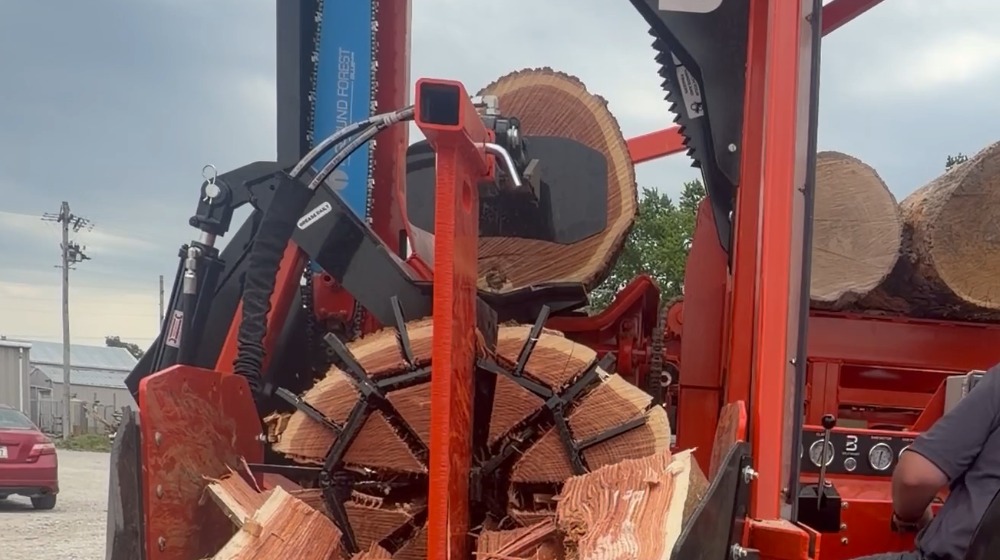

Improved Pivoting Last Piece Table

The B20 HP features an improved pivoting last piece table that makes handling the final section of each log faster and easier. This thoughtful design enhancement reduces operator fatigue and keeps your workflow smooth from first cut to last.

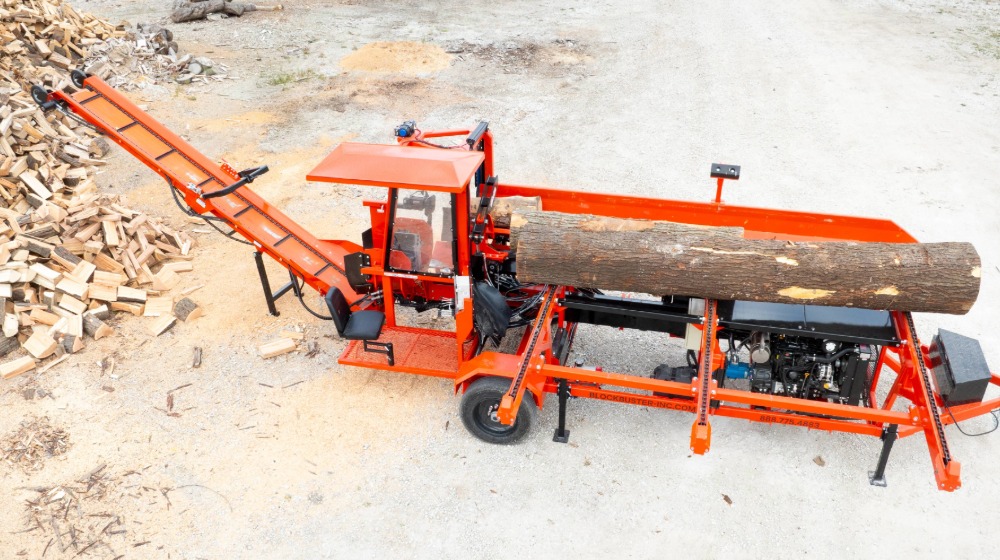

16′ Folding and Pivoting Elevator

The optional 16″ wide heavy-duty chain 16′ long attached conveyor features both hydraulic pivoting and electric remote-controlled winch folding for effortless one-person setup and breakdown.

The 60-degree total pivot range (30 degrees to each side) lets you stack more wood without relocating your processor. Operate from level to 45 degrees vertical, reaching 12 feet from the ground to the end of the elevator—ideal for building tall, organized piles.

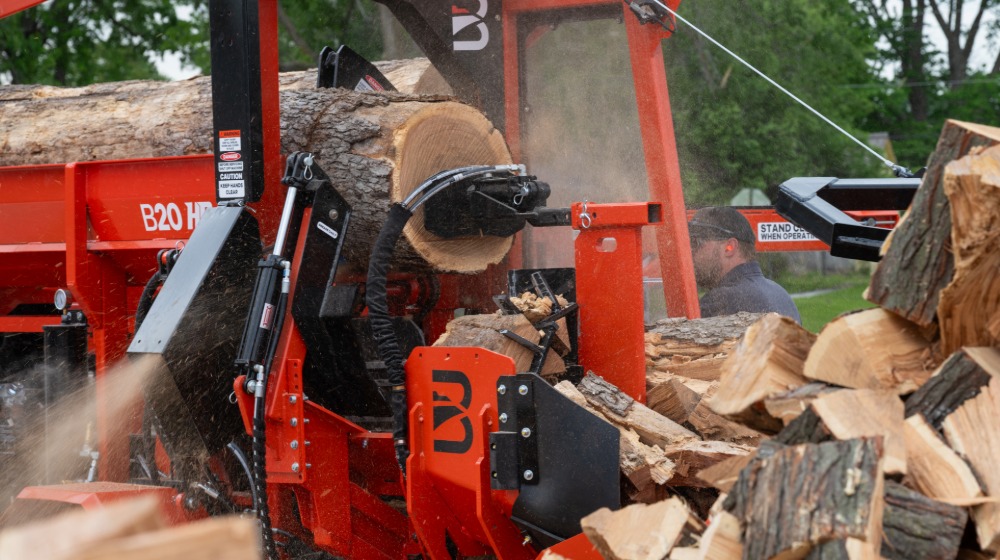

Improved Dust Control System

The redesigned closed dust chute features a pinned hinge attachment for easy fold-down cleaning and quick removal, providing clear service access to your bar and chain while keeping your work area clean.

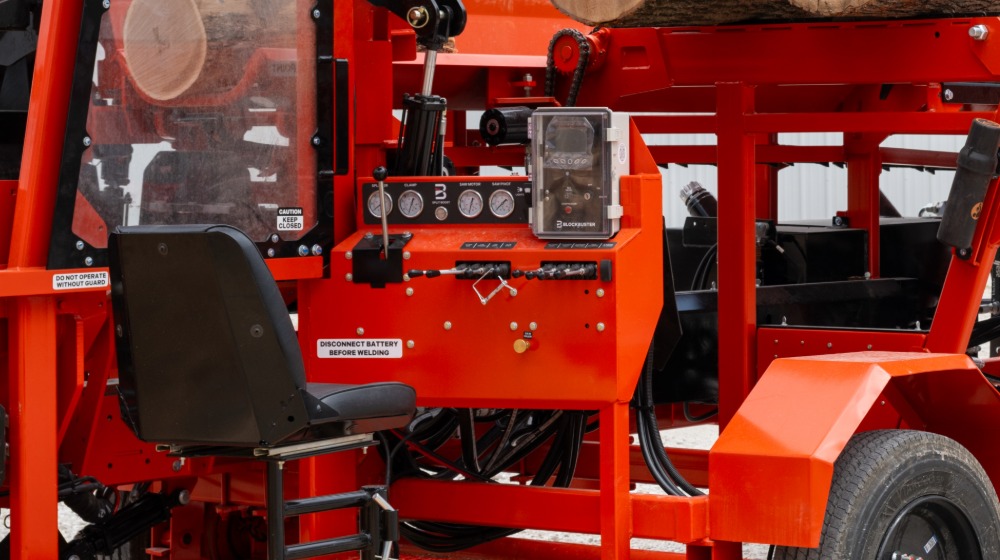

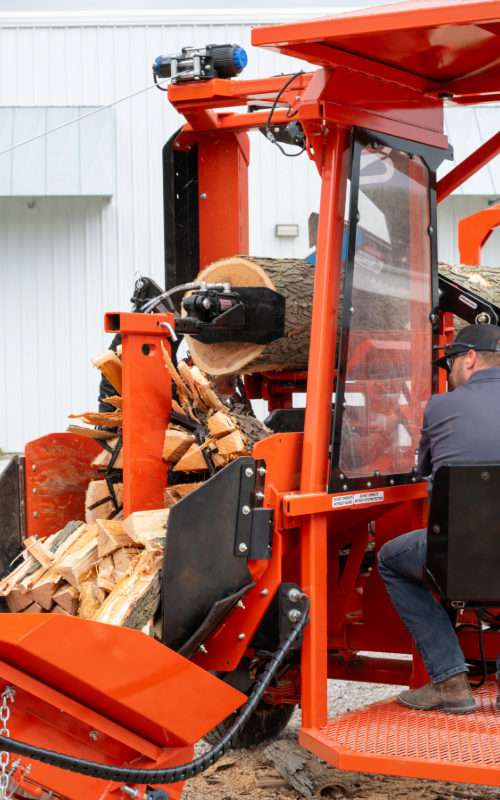

Built with the Operator in Mind

Ergonomics and efficiency come together in this design. The operator’s platform and log deck are strategically positioned for optimal workflow. Featuring easy-access splitter tray and intuitive single-lever controls for log clamping and sawing, this industrial firewood processor prioritizes operator comfort and productivity.
